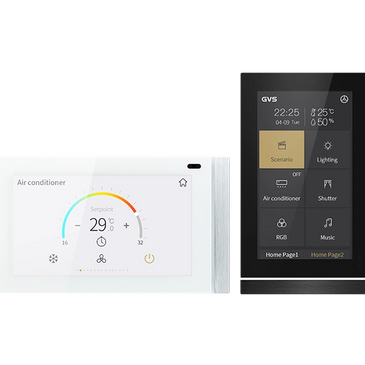

3.3-inch touchscreen with 3 physical buttons, catering to different user interaction preferences. Adhering to the design style of "screen-key integration" of the Waltz Smart. Touch+ Pad. The virtual buttons on the touchscreen are integrated with rich functions, providing a user-friendly interactive experience.
KNX Smart Touch S7 is a 6.9-inch KNX smart control panel with a screen resolution of up to 1440*720.In addition to integrating KNX device control, it also connects to a SIP intercom system, combining indoor and outdoor communication into one entity.

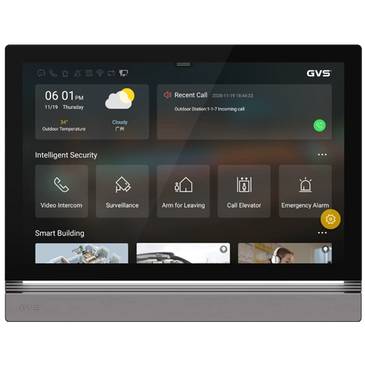

10.1" IPS touch panel,resolution 1280*800, aluminum faceplate, ambience LED strip, built-in temperature sensor. Full KNX functions with list-view or map-view, full intercom functions, 48V PoE, connect IP camera.

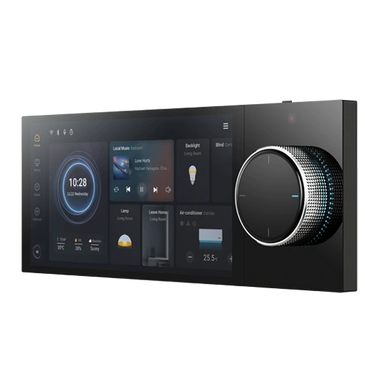

Both inside and outside repair, is not only the art on the wall, but also a powerful smart home control center, integrated with the vast majority of control functions. It covers lighting switch, RGB, RGBW and color temperature adjustment, curtain, scene, air conditioning, fresh air, background music control, etc.
KNX Smart Touch with push button,3-gang not only supports screen touch operation, but also supports button operation, bringing a sense of dual experience while integrating functions such as Dimming, Curtain, Scene, Room temperature controller, Air conditioning, Ventilation system, Audio control, RGB and RGBW dimming, Colour temperature dimming, and so on..
5" IPS touch panel, resolution 480*854, aluminum faceplate, built-in temperature & proximity sensor, vertical/horizontal adjustable. Full KNX functions: 15 control pages including switch,dimming, shutter, scene control, value sending, RGB, RGBW,RGBCW,Color Temp.

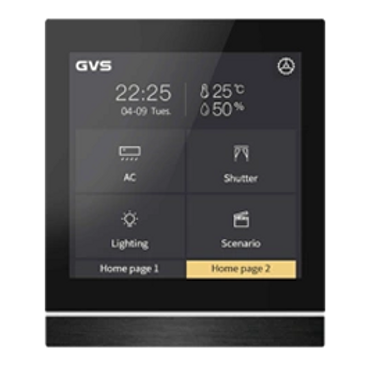

4" IPS touch panel, resolution 480*480, aluminum faceplate, built-in temperature & proximity sensor. Full KNX functions: 6 control pages including switch, dimming, shutter, scene control, value sending, RGB, HVAC, AC, floor heating, ventilation, audio control, energy metering, air quality display.

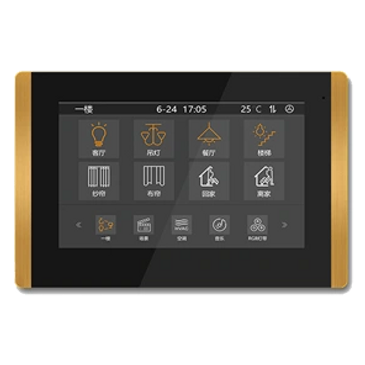

10.1” color TFT touch panel, resolution 1280*800, aluminum faceplate, built-in temperature sensor. Full KNX functions: 10 control pages including switch, dimming, shutter, scene control, value sending, RGB, HVAC, AC,floor heating, ventilation, audio control,air quality display.Max.32 timing, 2 group event,8 logic functions.
The Multifunctional Actuator, 4-Fold,Flush Mounted (Referred to as Multifunctional actuator) is a module that integrates multiple relay output functions, including switch output, curtain output, fan output, in addition to dry contact input and LED output indication functions.
Universal Dimming Actuator, Flush Mounted,1-Fold (hereinafter referred to as Dimmer) has only 1 output channel, and it can connect with dimmable lamps (such as incandescent lamps, halogen lamps, energy-saving lamps, LED, etc.),
KNX Universal Dimming Actuator,1/2/4-Fold (hereinafter referred to as Dimmer) has 1/2/ 4 output channels, and it can connect with dimmable lamps (such as incandescent lamps, halogen lamps, energy-saving lamps, LED, etc.),
16A or 20A/channel, un rated voltage 250V AC, 50-60Hz, high-current magnetic relay, max. switching current 20A switch/heating actuator operation mode. Also available in
16A/channel, un rated voltage 250V AC, 50-60Hz, high-current magnetic relay, max. switching current 20A switch/heating actuator operation mode. Also available in
KNX Switch Actuator 4/8/12-Fold, Current Measurements (Secure)
The Multifunctional Actuator is a multi-output module, integrating multiple output functions, including switch output, curtain DC/AC output, fan output and valve output. Also available in
Supports 24V AC or 230V AC thermal drive. 6 independent valve outputs, Max. 300mA/ channel. 6 channels of room temperature controller: support heating/cooling mode, integrating 2-point and PI control algorithm, with 5 scenes functions.
Max. load 300W/channel, leading edge phase control, un rated voltage 250V AC, 50-60Hz. KNX functions including switch, relative & absolute dimming, status response, scene control (15 folds), preset, staircase lighting, dimming curve adjustment (4 options) via manual buttons.
Dali telegram broadcast function, fault detection of lamps and ballasts of DALI devices. Max.64 DALI devices can be controlled (switch, dimming, brightness) each fold, 16 group control, 16 scene control.
Can be individually configured per input (4) & LED output(4), bus length≤10M, input 20V DC, output 5V DC. Main KNX functions including switch, dimming, shutter control, scene control, value sending, couter, multiple operation.
Can be individually configured per input (4/8) & LED output(4/8), bus length≤10M, input 20V DC, output 12V DC. Main KNX functions including switch, dimming, shutter control, scene control, value sending, RGB, shift register,multiple operation, delay mode, 8 group event,8 logic functions.
Can be individually configured per input (4/8/16) , bus length≤100M, input 20V DC. Main KNX functions including switch, dimming, shutter control, scene control, value sending, RGB, shift register,multiple operation, delay mode, 8 group event,8 logic functions.
Input 0-265V AC/DC, max. 2mA, 0-3V for "0", 9-265V for "1", cable length ≤100M (1.5mm2). Main KNX functions including switch, dimming, shutter control, scene control, value sending, switching sequence, couter,Multiple operation.
Diameter/radius 8m, max. mounting height 4m. With 24GHz microwave detection technology. Support 4 presence detector channels, and the first channel with 3 levels control, master/slave work mode, Constant lighting Control, RTC controller, Logic and scene group functions.
Diameter/radius 14m, max. mounting height 12m. Wothpyro electric infrared detection technology. Support 4 presence detector channels, and the first channel with 3 levels control, master/slave work mode, Constant lighting Control, RTC controller, Logic and scene group functions.
Diameter/radius 14m, max. mounting height 5m. Presence detection with max. three separate channels, two levels light switching, locking functions, constant light dimming function etc.Intallation: Ceiling-mounted.
Installation height max. 4m, transimitting distance max. 3m (radius), auxiliary power 12-30V DC. Support universal IR control up to 30 IR codes, and air-condition control up to 266 IR codes. Support DCA APP in ETS configuration.
Diameter/Radius 8m, Max. mounting height 2m. Master-slave detector function, logic funciton etc.Intallation: Ceiling-mounted
PM 2.5, PM 10, VOC,AQI, CO2, detection and display, built-in temperature & humidity sensor, connection to ventilation, cooling/heating, air quality control; 3 logic function.
The IP Router can be used as line or backbone coupler. It provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of the IP Router is to couple the Ethernet with one or more KNX-TP lines.
Input voltage 95V-255V AC, 50/60Hz, output 1: 30V DC +1/-2V, SELV with choke; output 2: 30V DC +1/- 2V,SELV without choke, total 640mA, short-circuit-protection. Current level indicator. The minimum distance betwee 2 power supply in a line is 300meter
RJ45 socket for10/100Base-T, IEEE 802.3 network, auto sensing, remote programming. Project management, support 4 local clients & 1 KNXnet/IP Device Manager.
RJ45 socket for10/100Base-T, IEEE 802.3 network, auto sensing, support max. 5 clients. Support KNX IP Secure, No need auxiliary power.
Model : BNIPR-00/00.N
Telegram tunneling and routing, can be used as a line coupler, backbone coupler to connect several TP areas or different TP installation systems via Ethernet.
Can be used as line coupler, backbone coupler or line repeater, filter table for line-crossing telegrams. Installation: DIN-rail Mounted
The KNX TP-USB Interface is designed for an intelligent building control system, which is used for facilitating communication between the PC and the KNX system. The device can connect the USB communication interface to the computer through a standard type A USB2.0 interface extension line.
Transimitting distance max. 2m, 1 fold 10A current detection. Support normal IR control of 30 IR codes, for air-condition control up to 266 IR codes. Support DCA APP in ETS configuration.
Work as a KNX/ZigBee Gateway pro, upload KNX devices to Tuya platform for management, support KNX functions including lighting, curtain control, scene control, temperature control, AC, background music, HVAC, logic functions etc.
By default it contains 1 fold of KNX/RS485 converter. Another 3 folds of KNX/RS232 or KNX/RS485 converter boards can be added to form a device with flexible folds of 1RS485 + (1~3) RS485/RS232.
Switch relay 4 * 16A,21 * 6A; 1 folds AC/Dry contact shutter, 2 folds TRIAC dimming, 3 folds 0-10V dimming, 1 fold fan coil actuator with 0-10V output valve, 1 fold IP protocol, 5 folds of dry contact/binary input/LED output.
Switch relay 4 * 16A, 6 * 10A; 2 folds dimmer 1-10V, 1 folds AC/Dry contact shutter, 1 fold fan coil actuator, 20 dry contact, 1 fold RS485 Protocol Conversion, I fold KNX/IP Protocol Conversion.
Air1 Server V2 is a device that realizes management and control for KNX standard system, and also used for mobile devices (iOS, Android smartphones and tablets) and computer devices (Windows and Mac).
