Lingg & Janke KNX Actuators
Switching Actuators 16A C Load 140µF / 200µF
Standard Switching Actuators 16A C load 200μF
Switching Actuators 16A C Load 140µF / 200µF

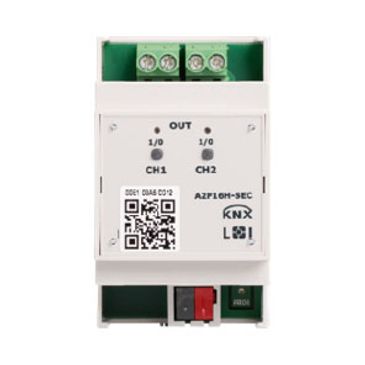

A2F16H-SEC : KNX Secure switching actuator 2f , manual operation. FDSK on front plate for easy read access. 2 channels for 2 independent load circuits. Switching capacity per channel: 16A 250VAC, suitable for C load up to 200µF. Also available in 4f / 6f / 9f.
Blind / Shutter Actuators
Standard Switching Actuators 16A C load 200μF
Switching Actuators 16A C Load 140µF / 200µF
J2F6-Q : Blind / shutter actuator 2 fold , KNX quick. 2 channels for 2 independent electrical drives. Switching capacity per channel: 6A 250VAC. Mechanical contact locking for each channel. Programmable via ETS with coding switches set to 0. Also available in 4 fold / 6 fold.
Standard Blind / Shutter Actuators
Standard Switching Actuators 16A C load 200μF
Standard Switching Actuators 16A C load 200μF

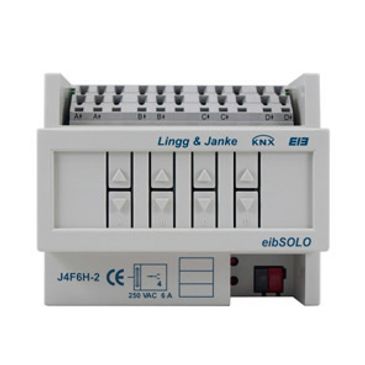

J4F6H-2 : KNX std. blind / shutter act. 4f, m. op. 4 channels for 4 independent electrical drives. Manual operation without KNX bus power. Time functions, positions, scenes (8), alarm function, inhibit function, status. Switching capacity per channel: 6A 250VAC. Also available in KNX std. blind / shutter act. 6f, m. op.
Standard Switching Actuators 16A C load 200μF
Standard Switching Actuators 16A C load 200μF
Standard Switching Actuators 16A C load 200μF
A2X6F16H-2 : KNX std. switching actuator 2x6f, manual operation, 2nd generation. 2x6 channels for 12 independent load circuits. Manual operation of relays without KNX bus power. Time functions, logical functions, status, scenes (32),announce function, inhibit function, hour meter. Also available in different models.
Lingg & Janke KNX Push Buttons & Interfaces
KNX flush mount push button 4fold
KNX flush mount push button 4fold
KNX flush mount push button 4fold
4 binary inputs / outputs . Including KNX bus coupling unit, without rockers, without cable sets. Integrated temperature and humidity sensor.
KNX flush mount push button 8fold
KNX flush mount push button 4fold
KNX flush mount push button 4fold
Including KNX bus coupling unit, without rockers, without cover frames. And integrated temperature and humidity sensor.
Push Button Interfaces
KNX flush mount push button 4fold
Eco + Push Button Interfaces
TS4F-2-QU : KNX quick push button interface for 4 single buttons, with separate wires. Functions switching (all off, off, on, toggle), dimming (darker, brighter, darker/brighter), blind / shutter control (down, up, down/up), heating (with external 2 way controller). Models Available.
Eco + Push Button Interfaces
Eco + Push Button Interfaces
Eco + Push Button Interfaces
TS4F-2-E : KNX Eco+ push button interface with 4 inputs with separate wires. Input functions switching (standard, press/release, short/long), dimming, blind / shutter, scene, inhibit. Output functions time functions, logical functions, status, scenes (8) . Different numbers of inputs are available.
KNX IP interface
Eco + Push Button Interfaces
KNX IP interface
COMIP-REG-1 : KNX standard IP interface. Power supply via KNX bus and also KNX standard USB interface available.
KNX Binary Inputs / Outputs
KNX Secure Binary Inputs
KNX Standard Binary Input
KNX Secure Binary Inputs
BE4FK-SEC : KNX Secure binary input 4 fold, for dry contacts. FDSK on front plate for easy read access. Switching, dimming, blind / shutter control, values, counters. Also available in signal voltage 230V.
KNX Quick Binary Inputs
KNX Standard Binary Input
KNX Secure Binary Inputs
BE4FK-Q : KNX quick binary input 4 fold, for dry contacts. Functions on switching (off, on), dimming (darker, brighter), blind / shutter control (down, up). And programmable via ETS with coding switches set to 0. Also available in signal voltage 230V.
KNX Eco+ Binary Input
KNX Standard Binary Input
KNX Standard Binary Input
BE4FK-E : KNX eco+ binary input 4 fold, for dry contacts. Switching, dimming, blind / shutter control, values, counters. Also available in signal voltage 230V.
KNX Standard Binary Input
KNX Standard Binary Input
KNX Standard Binary Input
BE9FK : KNX std. binary input 9 fold, for dry contacts. Switching, dimming, blind / shutter control, values, counters. Also available in signal voltage 230V and signal voltage 24V.
KNX Dimmers
KNX Secure Dimming Actuator
KNX Quick Universal Dimming Actuator
KNX Quick Universal Dimming Actuator
DIM4F110H-SEC : KNX Secure 1-10V interface 4fold, manual operation. Switching capacity per channel: 16A 250VAC, suitable for C load up to 140µF and 1-10V control output per channel: max. 20 loads.
KNX Quick Universal Dimming Actuator
KNX Quick Universal Dimming Actuator
KNX Quick Universal Dimming Actuator
DIM4FU-2-FW-Q : KNX quick universal dimming actuator 4-way, 4×2.5A / 570W. Dimming power per channel: 2.5A 250VAC 570W. 2 channels (AB and CD) can be combined for 1000W loads. Newly launched KNX quick 1-10V interface 4-way.
KNX ECO+ Dimming Actuator
KNX Standard Universal Dimming Actuator
KNX Standard Universal Dimming Actuator
DIM4F110-E : KNX eco+ 1-10V interface 4-way. 4 channels for 4 independent loads and circuits. Switching capacity per channel: 16A 250VAC.With 1-10V control output per channel: Max. 20 loads .
KNX Standard Universal Dimming Actuator
KNX Standard Universal Dimming Actuator
KNX Standard Universal Dimming Actuator
DIM4FU-2-FW : KNX standard universal dimming actuator 4-way, 4x 2.5A / 570W. Flicker-free dimming range 0-100% of energy meter for each channel. Dimming power per channel: 2.5A 250VAC 570W. 2 channels (AB and CD) can be combined for 1000W loads
KNX Quick UP bus couplers/Sensors/Power Supply
KNX Quick Bus Coupler For Flush Mounting
KNX Standard And KNX Quick Duct / Immersion Sensor
KNX Quick Bus Coupler For Flush Mounting
UPB8FL-2-QU-60/60 : KNX quick UP bus coupler with 8 inputs / outputs Single wire connection cable, 8 inputs Length 60cm. Also available inputs length 20cm, 4 inputs length 30cm.
Temperature sensors
KNX Standard And KNX Quick Duct / Immersion Sensor
KNX Quick Bus Coupler For Flush Mounting
FRF99-FW : KNX DIGITEMP damp room temperature sensor. 4 independent switching thresholds (only with ETS prog.) And also available in contact sensor for temperature and room temperature sensor.
KNX Standard And KNX Quick Duct / Immersion Sensor
KNX Standard And KNX Quick Duct / Immersion Sensor
KNX Standard And KNX Quick Duct / Immersion Sensor
KTF99-135-FW : KNX DIGITEMP duct / immersion sensor for temperature, sensor length 135mm. Available in 240mm and 392mm.
